Specifications
Engine Type V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve
Displacement 963cc
Maximum Power 90hp@7500rpm
Maximum Torque 85N·m@5500rpm
Fuel Supply Bosch EFI
Dimensions and weight
Length x Width x Height
2491x1370x1390mm
Wheelbase 1480mm
Minimum Ground Clearance 334mm
Dry weight 500kg
Payload Capacity 195kg
Fuel Capacity 26L

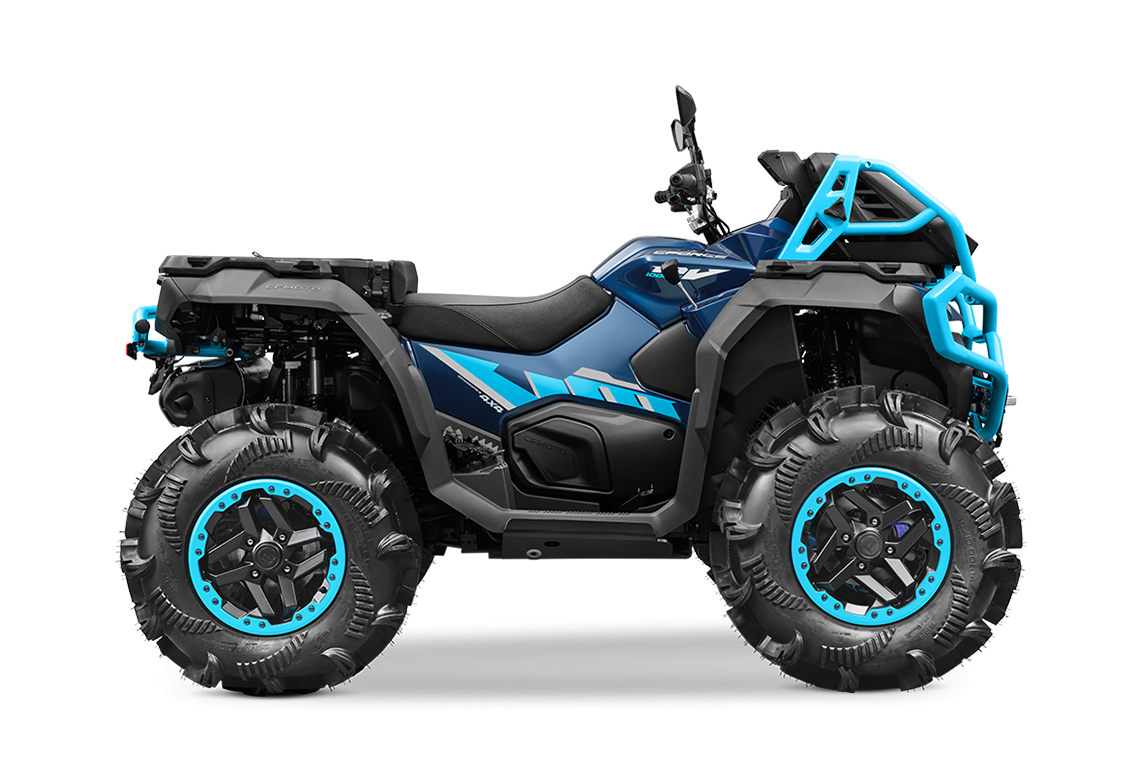

Colors Twilight Blue, Granite Ridge
Chassis
Drive 2WD/4WD/4WD differential lock
Brake Four-wheel hydraulic disc brakes
Front Suspension High clearance A-arm independent, 185mm travel
Rear Suspension Trailing arm independent, 236mm travel
Shock Absorber Piggyback gas shock absorbers, compression/rebound adjustable
Rim 14-inch beadlocks alloy
Front Tire 30X9.00 R14
Rear Tire 30X11.00 R14
